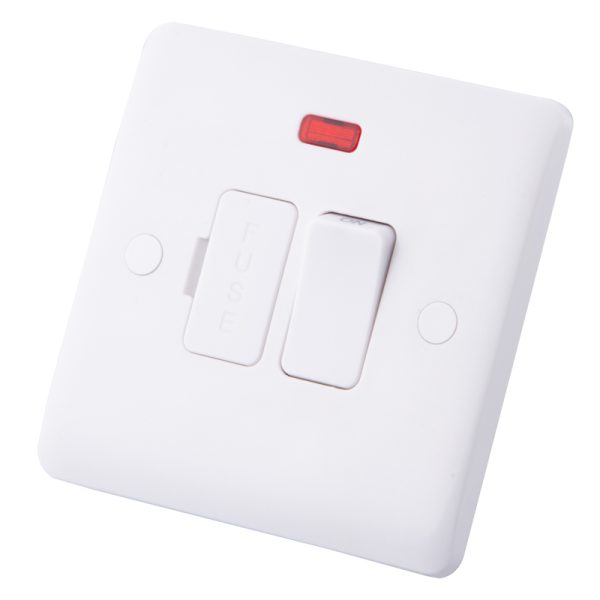

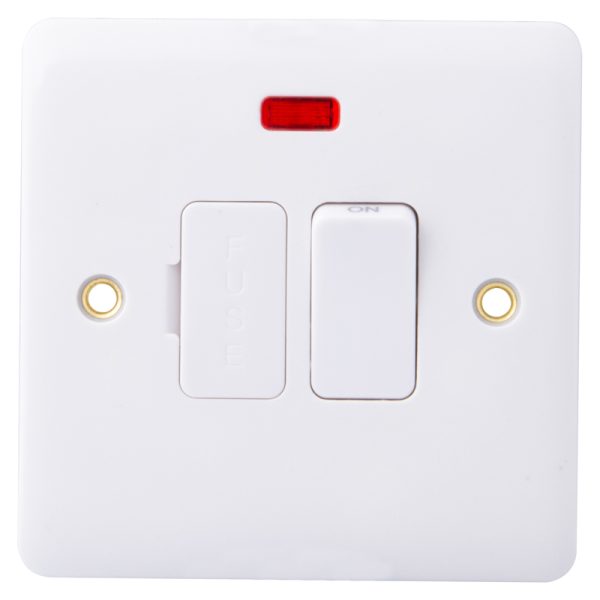

13A DP Switched Fused Spur Neon White

  • Double pole switch
  • Curved profile face plate with curved rocker
  • Neon indicator
  • 13A fuse fitted as standard
  • Optional bottom edge cable clamp
  • Screw cap covers for easy clean finish

Additional information

Height

86 mm

Width

86 mm

Weight

0.132 Kg

Cable Clamp

Yes

Cable Entry

Bottom Edge

Cable Outlet

Yes

Compliance

CE Compliant 93/68/EEC

Finish

M2 – White Plastic

Fixing Centers

60.3 mm

Frequency

50/60 Hz

Guarantee

25 Years

Fuse Fitted

Yes

Material

Moulded

Mounting

Wall

Mounting Depth

25 mm

Neon

Yes

Number of Poles

Double Pole

Packaging Types

Each

Shape

Square

Standards

BS 1363

Switched or Unswitched

Switched

Terminal Capacity Earth

4 x 2.5mm2

Terminal Capacity LN

4 x 2.5mm2

Voltage Rating

230 V

UNSPSC

39121704

Product Type

Fused Connection Units
