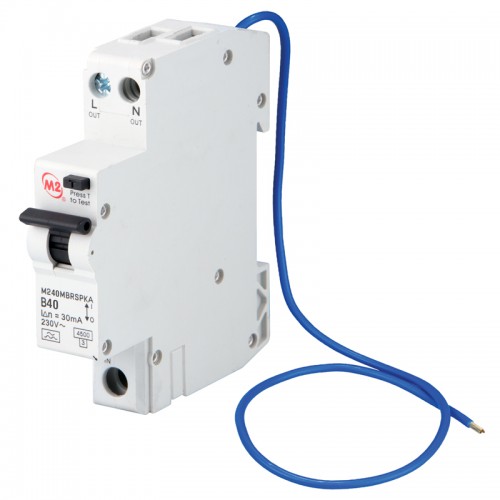

40A SP 1 Module 30mA B Curve 6kA Compact RCBO Type A

  • Solid neutral type single pole devices in one module format
  • The one module Type A RCBO is a combination of a B Curve MCB and a Residual Current Device
  • Enables both overcurrent protection and earth fault protection to be provided by a single unit
  • This combination allows earth fault protection to be restricted to a single circuit
  • Ensures that only the circuit with the fault is interrupted
Download PDF
Datasheet Download

Additional information

Height

86 mm

Width

17.7 mm

Depth

75 mm

Colour

Grey

Weight

0.22 Kg

Current Rating

40 A

Compliance

BS EN 61009

Guarantee

25 Year

Incoming Terminal Capacity

16.0 mm2

IP Rating

IP40

Material

PBT case

Mounting

Din Rail

Number of Modules

1

Number of Poles

Single Pole and Neutral

Outgoing Terminal Capacity

16.0 mm2

Packaging Types

Each

RCD Type

Type A

Short Circuit rating

6 kA

Standards

BS EN 61009, BS EN 61009-2-1, BS EN 61543

Tripping Characteristics

B Curve

Tripping Sensitivity

30 mA

Voltage Rating

230 V

UNSPSC

39121601
